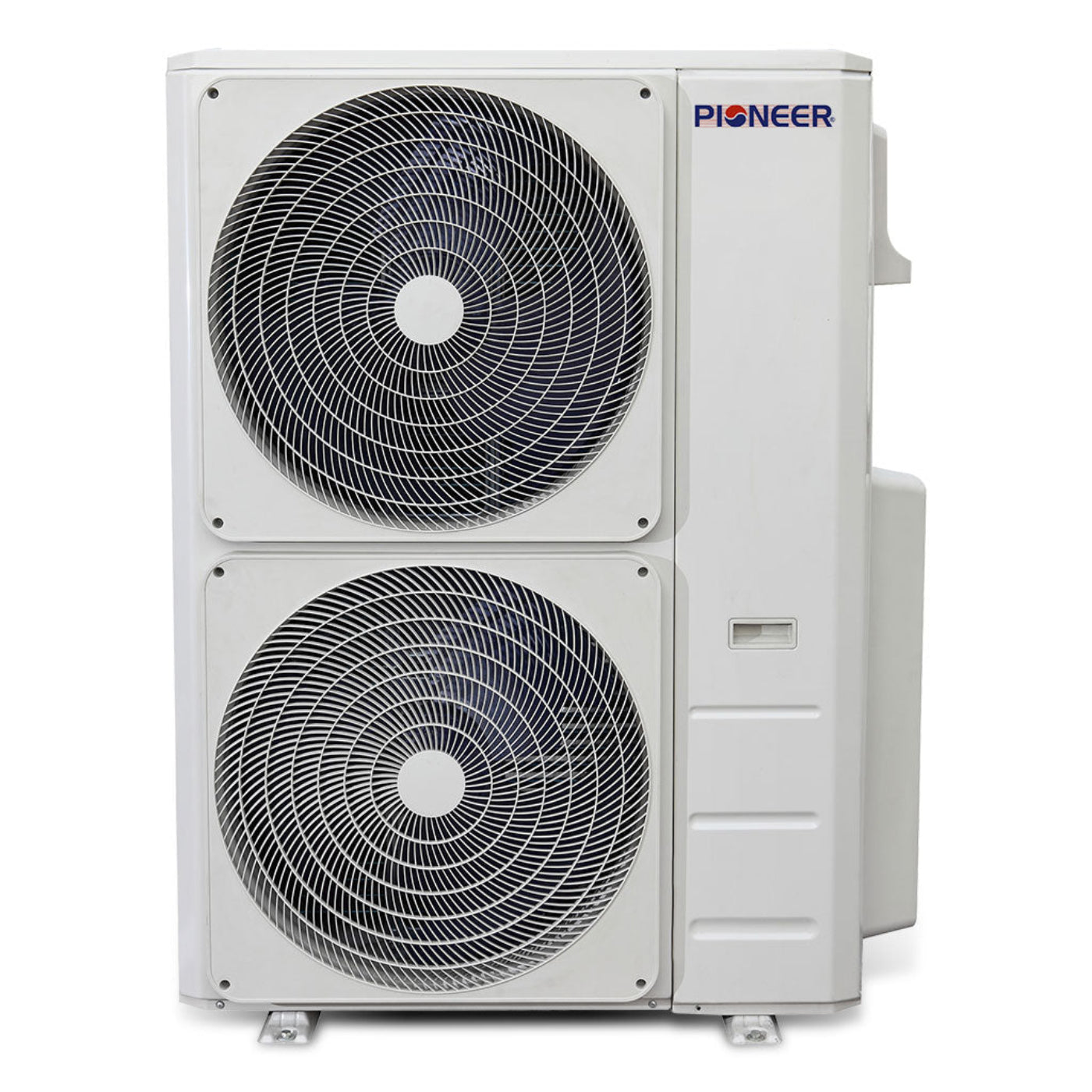

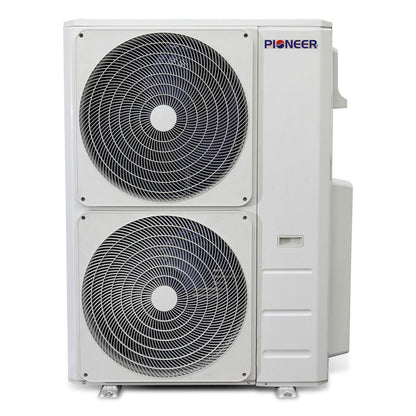

Pioneer Quint (5) Zone Quantum Series Outdoor Section 21.1 SEER2 Multi Split Inverter++ Air Conditioner & Heat Pump 230V - YN050GMFI22M5E

Pioneer Quint (5) Zone Quantum Series Outdoor Section 21.1 SEER2 Multi Split Inverter++ Air Conditioner & Heat Pump 230V - YN050GMFI22M5E

• OUTDOOR SECTION ONLY for Quint (5) Zone Quantum/Free-Match Series
• Ultra High Efficiency DC Inverter++ version
• Cooling capacity: 48,000 BTU/H Nominal (Range: 11,600 MIN ~ 49,700 MAX) with 21.1 SEER2 / 11 EER2 efficiency
• Heating capacity: 48,000 BTU/H Nominal (Range: 33,000 MIN ~ 53,900 MAX) with 9.5 HSPF2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Factory charged for up to 25’ line set per circuit
• Whisper Quiet Operation

What our Experts Think

• Powerful wall‑mount performance: With 24,000 BTU capacity and 22 SEER2 inverter++ technology, this Quantum Series unit delivers efficient cooling and heat pump heating suited for larger spaces (~650–900 sq ft) where strong, responsive comfort is required.

• Smooth inverter modulation: Variable‑speed DC inverter design ensures precise temperature control, reduced cycling, and lower energy use compared with traditional fixed‑speed systems — translating to quieter operation and extended equipment life.

• Ideal for multi‑zone systems: Designed as an indoor section that pairs with a multi‑zone outdoor condenser, it enables customized comfort control for individual rooms or zones while maximizing efficiency across the system.

• Energy‑conscious performance: High SEER2 and inverter efficiency help reduce utility costs and environmental impact, making it a smart choice for homeowners aiming to improve energy savings without sacrificing comfort.

• User‑friendly design: Wall‑mount placement offers easy installation, space‑saving aesthetics, and wide airflow distribution, making it suitable for living rooms, open‑plan spaces, bedrooms, and larger occupied areas.

• Installation flexibility: Standard 230 V operation and professional‑ready connections allow integrated multi‑zone setups with minimal extra hardware — ideal for custom HVAC projects.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a wall-mounted indoor mini-split section with integrated Inverter++ heat pump, designed for multi-zone climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 24,000 BTU cooling with heat pump heating, ideal for medium to large rooms or single-zone applications within multi-zone setups.

Q3: How energy-efficient is this unit?
A: Features Inverter++ technology for precise temperature control, quiet operation, and energy savings.

Q4: What installation style does it support?
A: Designed for wall-mounted installation, delivering efficient airflow while conserving space.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.

Q6: Can it integrate with multiple zones?
A: Yes, suitable for multi-zone setups, allowing one outdoor unit to support multiple indoor sections.

Q7: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.

Q8: What indoor unit features enhance comfort?
A: Includes adjustable airflow, quiet operation, and energy-efficient performance.

Q9: Is it compatible with Pioneer Quantum Series outdoor units?
A: Yes, it pairs seamlessly with Quantum Series multi-zone outdoor units for flexible configurations.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, bedrooms, offices, or small commercial spaces requiring discreet wall-mounted climate control.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.

• Keep the indoor unit and vents free of dust and debris to optimize inverter performance and consistent cooling/heating.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around the wall mount unit for proper airflow and temperature distribution.

• Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and full system optimization.
